Legacy CNC Woodworking proudly introduces the Roby1, a next-generation CNC platform designed to replace the highly successful Maverick 3×5 and redefine what a compact shop CNC can accomplish. Built with PC based Mach3 Motion Control.
$17,950
The Roby1 is engineered as a true multi-workstation CNC woodworking system, combining versatility, accuracy, and durability in a single space-efficient platform. The result is more work completed in-house, fewer setups, reduced outsourcing, and a faster return on investment without increasing floor space or headcount.
Most CNC machines force compromises:multiple setups, secondary machines, or outsourced operations to complete complex work. Roby1 Eliminates those tradeoffs by integrating three purpose-built CNC workstations into one unified system.
Designed to function as multiple machines in one, making it a smarter investment in both capability and profitability

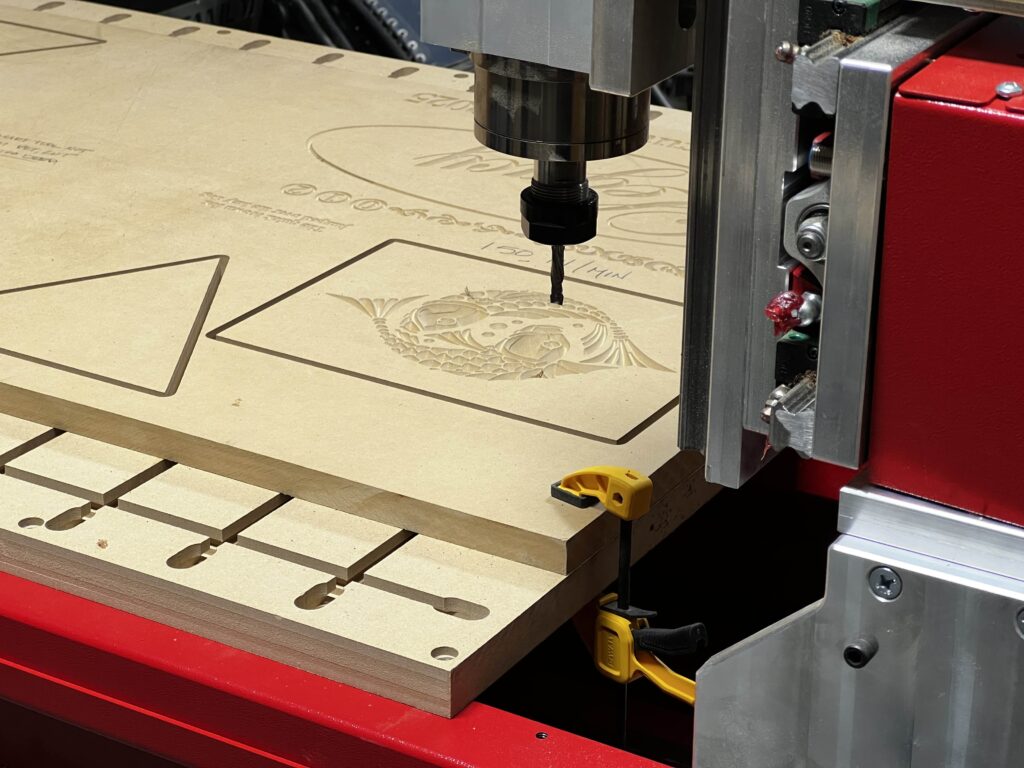

Workspace: 27″ x 60″ x 5″
Designed for everyday CNC production and detail work, the horizontal table is ideal for:
*Images of pre-production unit, final product may vary
This workstation delivers the rigidity and consistency required for both production and one-off custom work
*Images of pre-production unit, final product may vary

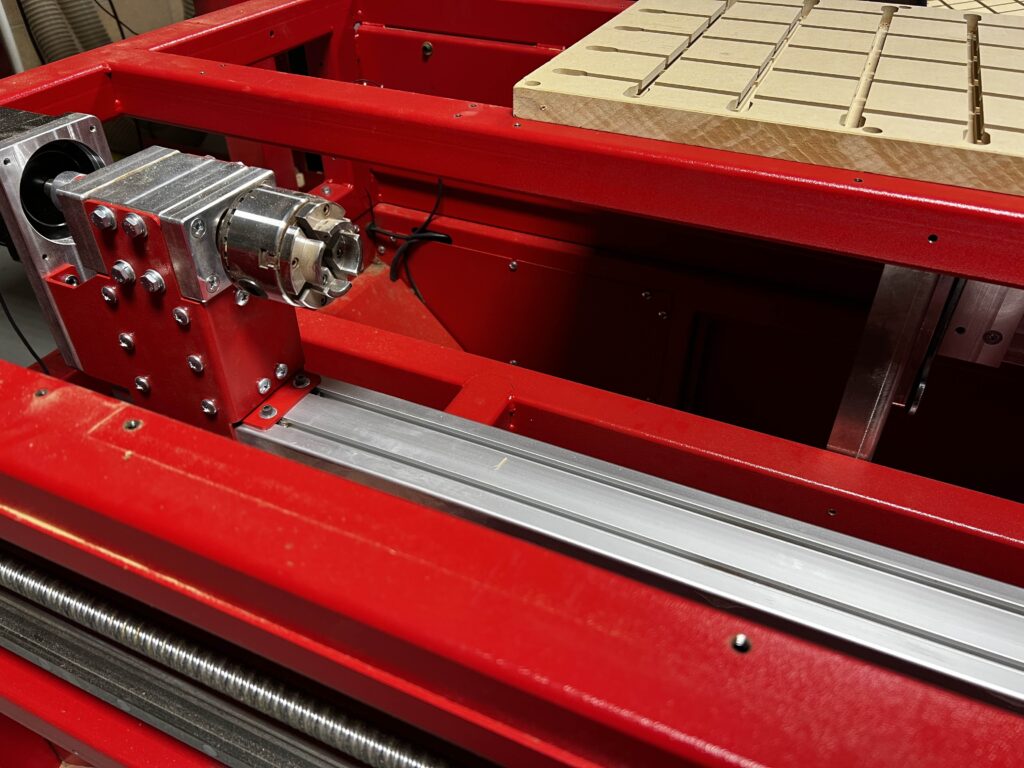

Capacity: 10.4″ diameter x 52″ length
The integrated rotary workstation enables:
These Capabilities typically require a dedicated CNC lathe. Roby1 delivers them in the same footprint and control system without compromise.

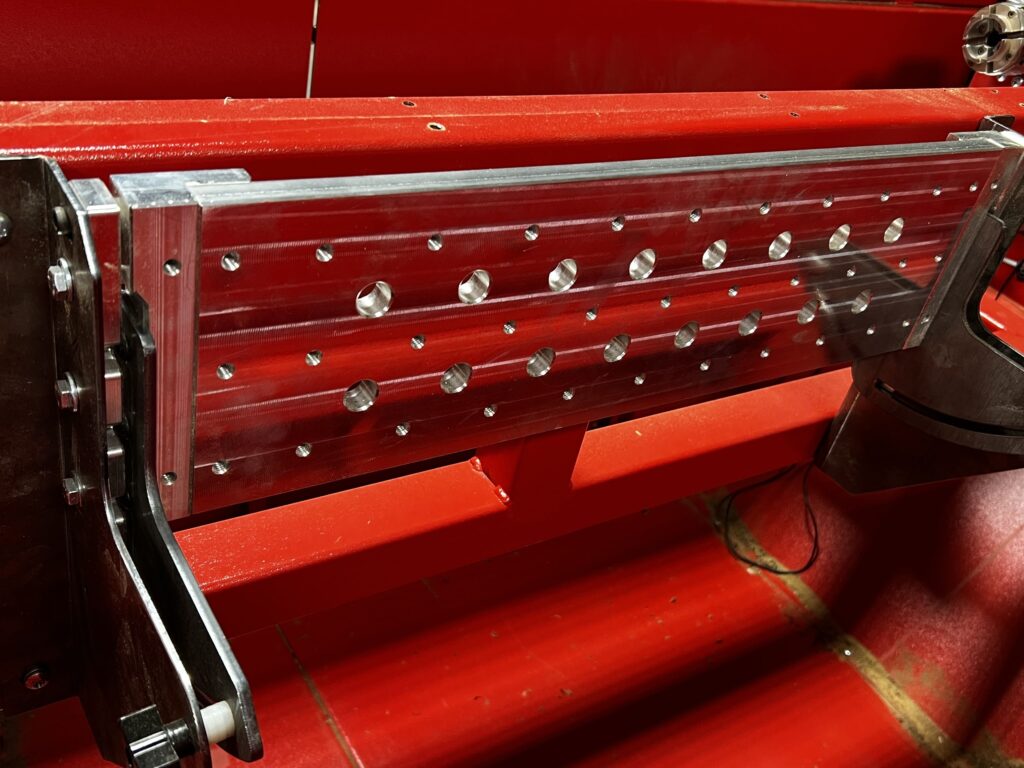

Workspace: 20″ x 34″ x 6″
Purpose-built for high-end furniture and complex assemblies, the vertical joinery workstation allows you to produce:
*Images of pre-production unit, final product may vary
This System reduces manual layout and fitting time while improving repeatability and finished quality
The Roby1 allows shops to add advanced joinery, decorative embellishments, complex spindles, and fine detail work that often require muliple specialized machines or outsourced services.
By bringing these processes in house, shops can:
For many shops, modest gains in efficiency and billable work can offset a significant portion of the machine’s cost within the first year.
Roby1 is built on a rugged, welded steel fram with a durable powder-coated finish. Unlike bolt-together CNC frames that can flex or lose accuracy over time it delivers:
This durability protects your investment and improves total cost of ownership over decades of real-world use.
Like all Legacy CNC systems, Roby1 is manufactured and supported in the United States backed by long-term parts availability, knowledgeable technical support, and a company committed to supporting your shop for the long haul.
Roby1 Represents the next step forward in Legacy CNC’s lineup, building on the success of the Maverick 3×5 while delivering greater capability, flexibility, and long-term value. It is designed for shops that want to do more, work smarter, and invest in equipment that pays for itself over time.
Standard Spindle
Manual Tool Change
Air cooled
Power – 2.20 kW
RPM Range – 0 – 18,000
Collet – ER20 tool shaft diameter ranges from 1/32 to 9/16
CT certified
Motion System
20mm profile guide rails with precision ball bearing carriages
16mm ball screw drive
Micro-stepping motors and drive for powerful and precise movement
Dimensions
Footprint: 88” X 40” X 62”
Worktable Height – 37.5
Electrical Requirements
220 VAC single phase power
30-amp circuit breaker protected input line
Power Line input cutout located in the control tower
For optimal performance use a grounding rod within 20 feet of the machine
Base CNC System – Starting at $27,500
Horizontal Workstation
6 hp Manual Tool Change Spindle
Delta CNC Controller
Options
6 hp Auto Tool Change Spindle
Turning Workstation
Vertical Workstation (Y-Axis)
Vertical Workstation (X-Axis)
Vacuum System
Standard Spindle
Manual Tool Change
Horsepower – 6.0 Hp 4.5 kW
RPM Range – 6,000 – 24,000
Collet – ER32
Horizontal Workstation
Work Area – 50″ X 50″
Optional ATC Spindle
Auto Tool Change
Horsepower – 6. Hp 4.5kW
RPM Range – 6,000 – 24,000
Tool Holders – 7
Tool Holder Type IWO30 / ER32 Coller
Optional Turning Workstation
Length – 48”
Swing Diameter – 10”
Bed Adjustment Angle – 0 – 4.2 Degrees
Bed Adjustment Method – Manual
Optional Vertical Workstation (Y-Axis Mount)
Work Area – 11” X 28” X 44”
Table Angle Adjustment: 0 – 90 Degrees
Optional Vertical Workstation (X-Axis Mount)
Work Area – 2” X 48” X 10”
Optional Vacuum Table System
Zones – 2
Control – CNC Controller
Dimensions
Footprint: 101” X 76” X 72.5”
Weight: 2,000 Lbs.
Electrical Requirements
Voltage: 220
Amperage: 50
Phase: Single
